Total Translational K.E. Of Gas

$=\frac{1}{2} M\left\langle v^{2}\right\rangle=\frac{3}{2} P V=\frac{3}{2} n R T$

$<v^{2}>=\frac{3 P}{\rho} \quad v_{rms}=\sqrt{\frac{3 P}{\rho}}=\sqrt{\frac{3 RT}{M_{mol}}}=\sqrt{\frac{3 KT}{m}}$

Important Points :

$-\mathrm{v}_{\mathrm{rms}} \propto \sqrt{\mathrm{T}}$

$\bar{v}=\sqrt{\frac{8 K T}{\pi m}}=1.59 \sqrt{\frac{K T}{m}}$

$\mathrm{v}_{\mathrm{rms}}=1.73 \sqrt{\frac{\mathrm{KT}}{\mathrm{m}}}$

Most probable speed:

$V_{p}=\sqrt{\frac{2 KT}{m}}=1.41 \sqrt{\frac{KT}{m}} \therefore V_{rms}>\overline{V}>V_{mp}$

Degree of freedom :

• Monoatomic $f=3$

• Diatomic $f=5$

• Polyatomic $f=6$

Maxwell’s Law Of Equipartition Of Energy :

• Total K.E. of the molecule $=\frac{1}{2} \mathrm{fKT}$

• For an ideal gas : Internal energy $U=\frac{f}{2} n R T$

Ideal gas law:

$PV = nRT$

First Law Of Thermodynamics:

$\Delta U = Q - W$

Isothermal Process:

• Workdone in isothermal process : $W=\left[2.303 nRT \log _{10} \frac{V_f}{V_i}\right]$

• Internal energy in isothermal process : $ \Delta \mathrm{U}=0$

Isochoric Process

• Work done in isochoric process : $ d W=0$

• Change in internal energy for an ideal gas during an isochoric process: $\Delta U = nC_v\Delta T$

Isobaric process :

• Work done: $\Delta \mathrm{W}=n R\left(T_{\mathrm{f}}-\mathrm{T}_{\mathrm{i}}\right)$

• Change in internal energy for isobaric process: $\Delta U = n C_p \Delta T$

Adiabatic process :

• Work done: $\Delta W=\frac{nR\left(T_{i}-T_{f}\right)}{\gamma-1}$

Specific heat :

$ C_{V}=\frac{f}{2} R \quad C p=\left(\frac{f}{2}+1\right) R $

Molar heat capacity of ideal gas in terms of $\mathbf{R}$ :

(i) for monoatomic gas : $\frac{C_{p}}{C_{v}}=1.67$

(ii) for diatomic gas : $\frac{C_{p}}{C_{v}}=1.4$

(iii) for triatomic gas : $\frac{C_{p}}{C_{v}}=1.33$

Heat Capacity Ratio :

$\gamma=\frac{C_{p}}{C_{v}}=\left[1+\frac{2}{f}\right]$

Mayer’s equation:

For ideal gas: $C_{p}-C_{v}=R $

In cyclic process :

$\Delta Q=\Delta W$

In a mixture of non-reacting gases :

$\text{Molar weight}=\frac{n_{1} M_{1}+n_{2} M_{2}}{n_{1}+n_{2}}$

$C_{v}=\frac{n_{1} C_{v_{1}}+n_{2} C_{v_{2}}}{n_{1}+n_{2}}$

$\gamma=\frac{C_{p(\text { mix })}}{C_{v(\text { mix })}}=\frac{n_{1} C_{p_{1}}+n_{2} C_{p_{2}}+\ldots}{n_{1} C_{v_{1}}+n_{2} C_{v_{2}}+\ldots}$

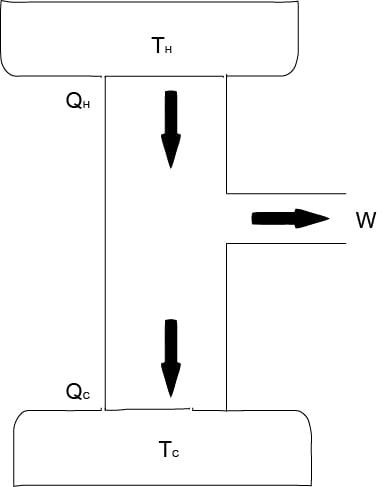

Heat Engines

$\text{Efficiency,} \eta=\frac{\text { work done by the engine }}{\text { heat sup plied to it }}$

$\eta=\frac{W}{Q_{H}}=\frac{Q_{H}-Q_{L}}{Q_{H}}=1-\frac{Q_{L}}{Q_{H}}$

Second law of Thermodynamics

• Kelvin- Planck Statement

It is impossible to construct an engine, operating in a cycle, which will produce no effect other than extracting heat from a reservoir and performing an equivalent amount of work.

• Clausius Statement

It is impossible to make heat flow from a body at a lower temperature to a body at a higher temperature without doing external work on the working substance

Entropy:

• Change in entropy of the system is $\Delta S=\frac{\Delta Q}{T} \Rightarrow S_{f}-S_{i}=\int_{i}^{f} \frac{\Delta Q}{T}$
• In an adiabatic reversible process, entropy of the system remains constant.

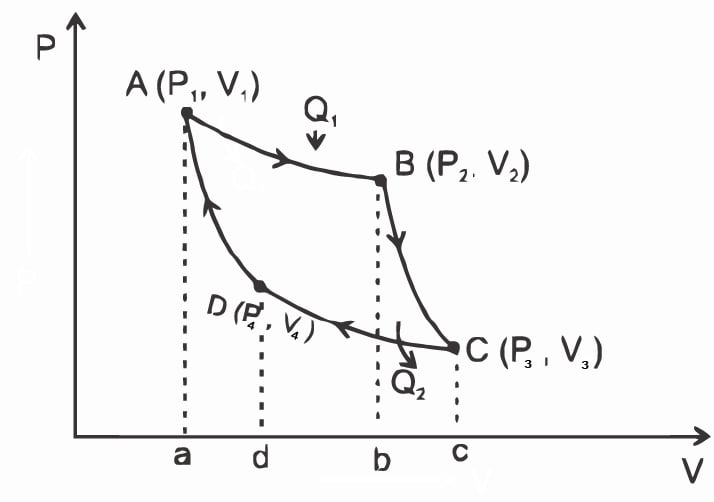

Efficiency of Carnot Engine:

(1) Operation I (Isothermal Expansion)

(2) Operation II (Adiabatic Expansion)

(3) Operation III (Isothermal Compression)

(4) Operation IV (Adiabatic Compression)

Thermal Efficiency of a Carnot Engine:

$\frac{V_{2}}{V_{1}}=\frac{V_{3}}{V_{4}} \Rightarrow \frac{Q_{2}}{Q_{1}}=\frac{T_{2}}{T_{1}} \Rightarrow \eta=1-\frac{T_{2}}{T_{1}}$

Refrigerator (Heat Pump)

• Coefficient of performance, $\beta=\frac{Q_{2}}{W}=\frac{1}{\frac{T_{1}}{T_{2}}-1}==\frac{1}{\frac{T_{1}}{T_{2}}-1}$

Calorimetry And Thermal Expansion Types Of Thermometers :

(a) Liquid Thermometer : $ T=\left[\frac{\ell-\ell_{0}}{\ell_{100}-\ell_{0}}\right] \times 100$

(b) Gas Thermometer :

• Constant volume : $T=\left[\frac{P-P_{0}}{P_{100}-P_{0}}\right] \times 100 ; P=P_{0}+\rho g h$

• Constant Pressure : $T=\left[\frac{\mathrm{V}}{\mathrm{V}-\mathrm{V}^{\prime}}\right] \mathrm{T}_{0}$

(c) Electrical Resistance Thermometer :

$ T=\left[\frac{R_{t}-R_{0}}{R_{100}-R_{0}}\right] \times 100 $

Thermal Expansion :

(a) Linear :

$ \alpha=\frac{\Delta L}{L_{0} \Delta T} \quad \text { or } \quad L=L_{0}(1+\alpha \Delta T) $

(b) Area/superficial :

$ \beta=\frac{\Delta A}{A_{0} \Delta T} \quad \text { or } \quad A=A_{0}(1+\beta \Delta T) $

(c) volume/ cubical :

$ r=\frac{\Delta V}{V_{0} \Delta T} \quad \text { or } \quad V=V_{0}(1+\gamma \Delta T) $

$ \alpha=\frac{\beta}{2}=\frac{\gamma}{3} $

Thermal stress of a material :

$ \frac{F}{A}=Y \frac{\Delta \ell}{\ell} $

Energy stored per unit volume :

$ E=\frac{1}{2} K(\Delta L)^{2} \quad \text { or } \quad E=\frac{1}{2} \frac{A Y}{L}(\Delta L)^{2} $

Variation of time period of pendulum clocks :

$ \Delta \mathrm{T}=\frac{1}{2} \alpha \Delta \theta \mathrm{T} $

$ \mathrm{T}^{\prime}<\mathrm{T} \quad \text { - clock-fast : time-gain } $

$ \mathrm{T}^{\prime}>\mathrm{T} \quad \text { - clock slow : time-loss } $

Calorimetry :

• Specific heat: $S=\frac{\mathrm{Q}}{\mathrm{m} \cdot \Delta \mathrm{T}}$

• Molar specific heat: $\mathrm{C}=\frac{\Delta \mathrm{Q}}{\mathrm{n} \cdot \Delta \mathrm{T}}$

• Water equivalent: $m_{m} S_{m}=m_{w} S_{w}$

Heat Transfer

• Thermal Conduction : $ \frac{d Q}{d t}=-K A \frac{d T}{d x}$

• Thermal Resistance : $\mathrm{R}=\frac{\ell}{\mathrm{KA}}$

Series And Parallel Combination Of Rod :

(i) Series : $\frac{\ell_{\text {eq }}}{K_{\text {eq }}}=\frac{\ell_{1}}{K_{1}}+\frac{\ell_{2}}{K_{2}}+\ldots$ when $\left(A_{1}=A_{2}=A_{3}=\ldots\right)$

(ii) Parallel : $K_{\text {eq }} A_{e q}=K_{1} A_{1}+K_{2} A_{2}+\ldots$ when $\left(\ell_{1}=\ell_{2}=\ell_{3}=\ldots\right)$

For absorption, reflection and transmission: $ r+t+a=1 $

• Emissive power : $ \mathrm{E}=\frac{\Delta \mathrm{U}}{\Delta \mathrm{A} \Delta \mathrm{t}}$

• Spectral emissive power : $ E_{\lambda}=\frac{d E}{d \lambda}$

Emissivity : $ e=\frac{E \text { of a body at } \mathrm{T} \text { temperature }}{\mathrm{E} \text { of a black body at } \mathrm{T} \text {temperature}}$

• Kirchoff’s law : $4\frac{E \text { (body) }}{a \text { (body) }}=E \text{(black body)}$

Wein’s Displacement law :

$\lambda_{\mathrm{m}} \cdot \mathrm{T}=\mathrm{b}$

$b=0.282 \mathrm{~cm}-\mathrm{k}$

Stefan Boltzmann law :

$ \mathrm{u}=\sigma \mathrm{T}^{4} \quad \quad \mathrm{~s}=5.67 \times 10^{-8} \mathrm{W} \mathrm{m}^{2} \mathrm{k}^{4} $

$ \Delta u=u-u_{0}=e \sigma A \left(T^{4}-T_{0}^{4}\right) $

Newton’s law of cooling :

$\frac{\mathrm{d} \theta}{\mathrm{dt}}=\mathrm{k}\left(\theta-\theta_{0}\right) ; \quad \theta=\theta_{0}+\left(\theta_{\mathrm{i}}-\theta_{0}\right) \mathrm{e}^{-\mathrm{kt}}$
